MVGGT: Multimodal Visual Geometry Grounded Transformer for Multiview 3D Referring Expression Segmentation

Changli Wu1, 2, †, Haodong Wang1, †, Jiayi Ji1, Yutian Yao5,
Chunsai Du4, Jihua Kang4, Yanwei Fu3, 2, Liujuan Cao1, *
1Xiamen University, 2Shanghai Innovation Institute, 3Fudan University,
4ByteDance, 5Tianjin University of Science and Technology
†Equal Contribution, *Corresponding Author
Paper Code 🤗 Demo

Abstract

Most existing 3D referring expression segmentation (3DRES) methods rely on dense, high-quality point clouds, while real-world agents such as robots and mobile phones operate with only a few sparse RGB views and strict latency constraints. We introduce Multi-view 3D Referring Expression Segmentation (MV-3DRES), where the model must recover scene structure and segment the referred object directly from sparse multi-view images. Traditional two-stage pipelines, which first reconstruct a point cloud and then perform segmentation, often yield low-quality geometry, produce coarse or degraded target regions, and run slowly. We propose the Multimodal Visual Geometry Grounded Transformer (MVGGT), an efficient end-to-end framework that integrates language information into sparse-view geometric reasoning through a dual-branch design. Training in this setting exposes a critical optimization barrier, termed Foreground Gradient Dilution (FGD), where sparse 3D signals lead to weak supervision. To resolve this, we introduce Per-view No-target Suppression Optimization (PVSO), which provides stronger and more balanced gradients across views, enabling stable and efficient learning. To support consistent evaluation, we build MVRefer, a benchmark that defines standardized settings and metrics for MV-3DRES. Experiments show that MVGGT establishes the first strong baseline and achieves both high accuracy and fast inference, outperforming existing alternatives.


Task & Benchmark

The MV-3DRES Task

Real-world agents (robots, mobile phones) often operate with sparse RGB views and strict latency constraints, unlike traditional methods that rely on pre-built dense point clouds.

We introduce Multi-view 3D Referring Expression Segmentation (MV-3DRES). The goal is to segment a 3D object described by natural language directly from a few sparse images, without any ground-truth 3D input at inference.

Challenges:

  • Incomplete Geometry: Sparse views lead to noisy and partial 3D reconstruction.
  • Weak Supervision: The target object occupies a tiny fraction of the 3D space, leading to optimization difficulties.

MV-3DRES Task

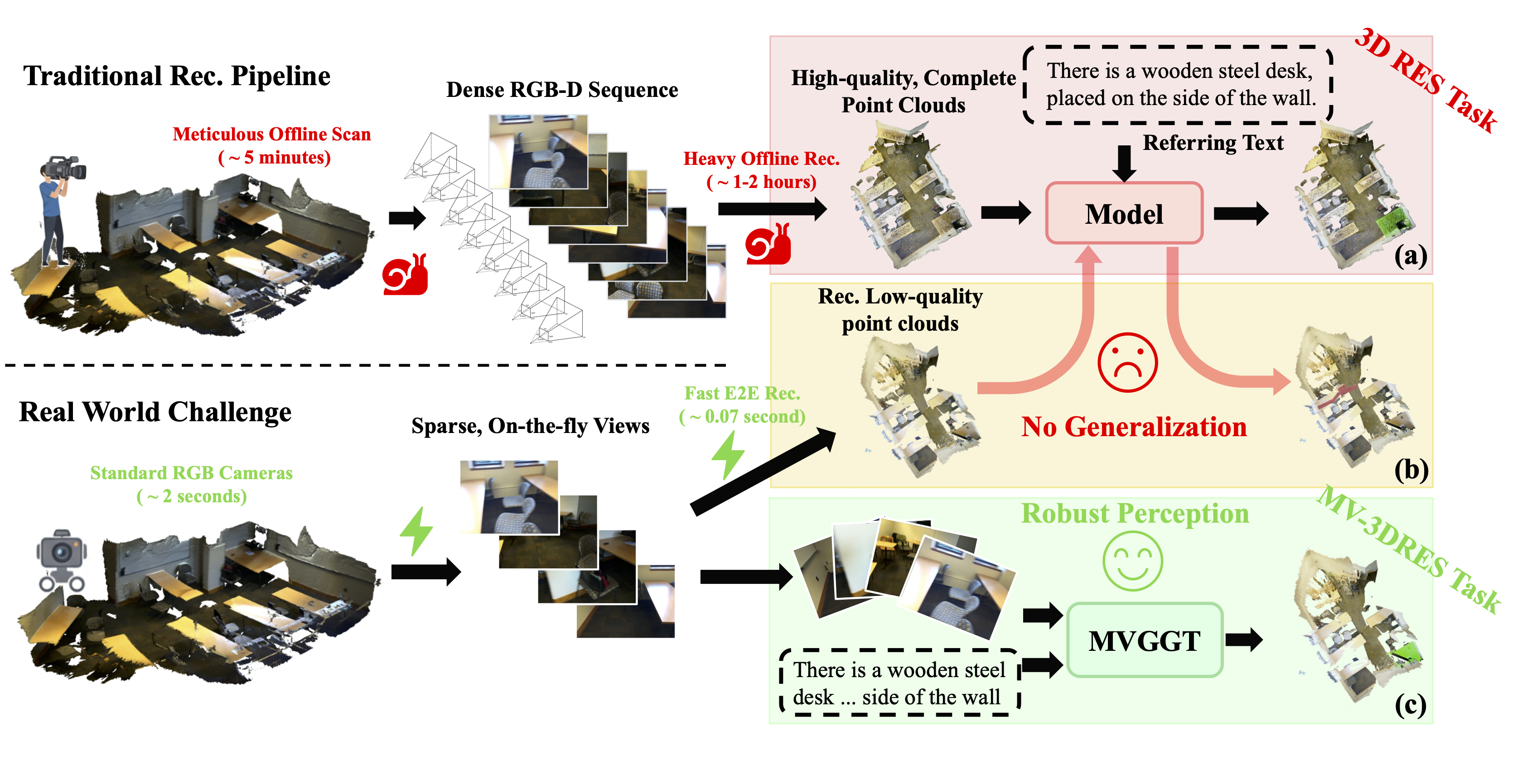

Figure 1: Comparison of the proposed MV-3DRES task (bottom) against the traditional two-stage reconstruction-then-segmentation pipeline (top) and direct reconstruction failures (middle).

MVRefer Benchmark

To standardize evaluation, we built MVRefer based on ScanNet and ScanRefer. It emulates embodied agents by sampling N=8 sparse frames. We provide metrics that decouple grounding accuracy from reconstruction quality, including mIoUglobal (3D) and mIoUview (2D projection).


Method: MVGGT

We propose the Multimodal Visual Geometry Grounded Transformer (MVGGT), an end-to-end framework designed for efficiency and robustness.

MVGGT Architecture

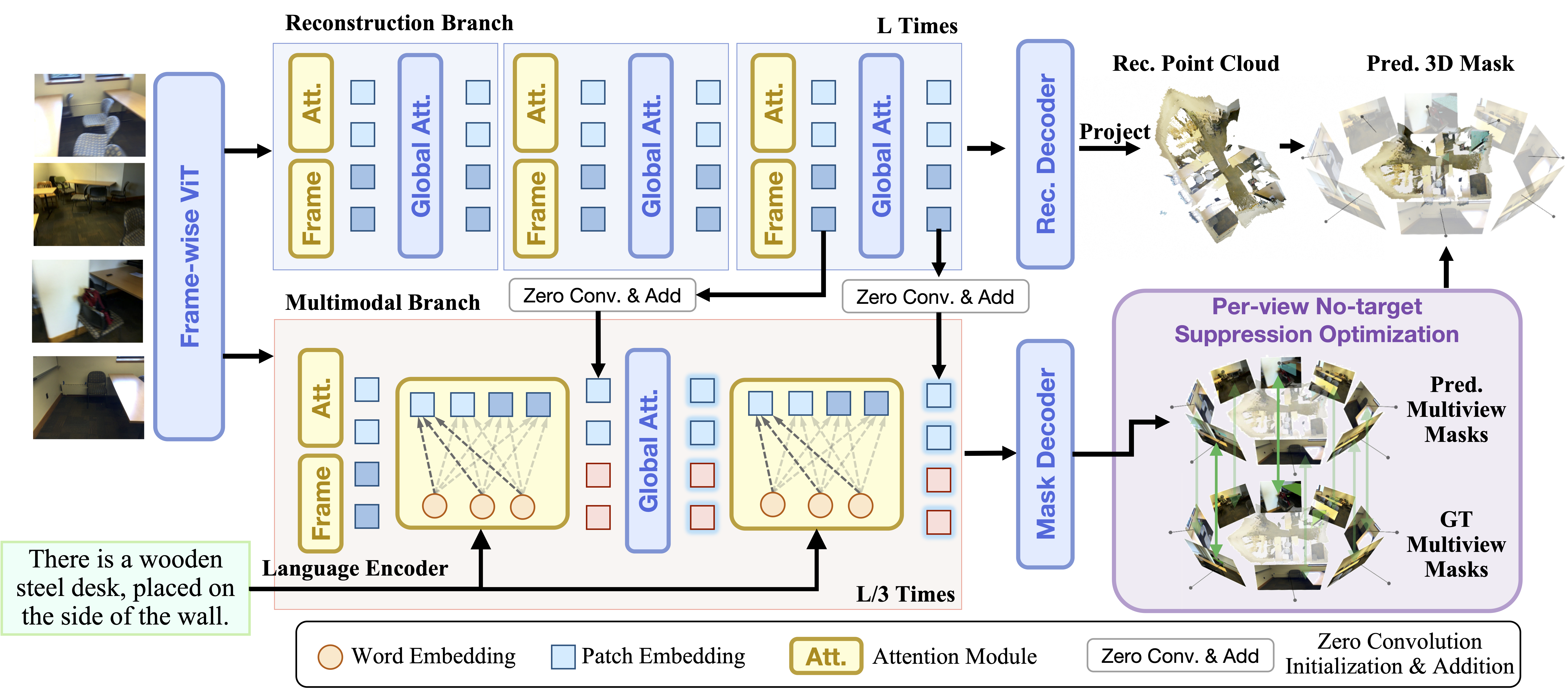

Figure 2: Architecture of MVGGT. It features a Frozen Reconstruction Branch (top) that provides a stable geometric scaffold, and a Trainable Multimodal Branch (bottom) that progressively injects language cues into visual features to predict the final 3D segmentation.

Dual-Branch Architecture

  • Frozen Reconstruction Branch: Uses a pre-trained geometry transformer to predict camera poses and depth maps, providing a stable geometric scaffold.
  • Trainable Multimodal Branch: Injects language features into visual representations. It receives geometric guidance from the frozen branch to align semantics with structure.

Solving the "Needle in a Haystack" Problem

The Problem (FGD): In sparse 3D space, the target object is extremely sparse (< 2%), causing the background to dominate the gradients. We call this Foreground Gradient Dilution.

Our Solution (PVSO): We introduce Per-view No-Target Suppression Optimization. Instead of relying solely on weak 3D signals, we enforce supervision in the dense 2D image domain.

  • Concentrated Signal: Foreground takes up ~15% of pixels in 2D views vs < 2% in 3D.
  • Balanced Training: We dynamically sample target-visible views to ensure strong gradients.
FGD and PVSO

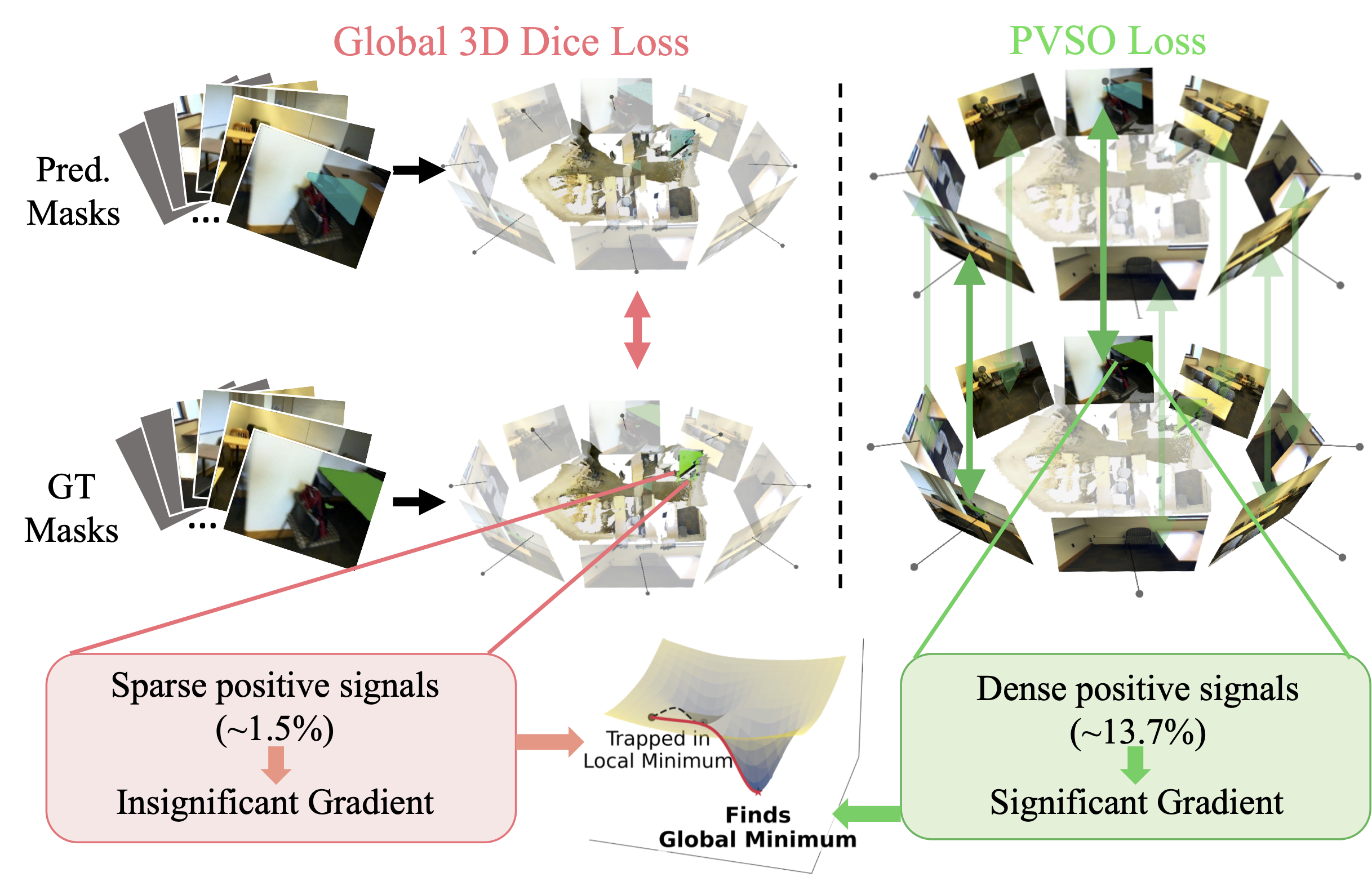

Figure 3: Visualizing the optimization challenge and our solution.


Qualitative Visualization

Reconstruction and Segmentation of ScanNet Photos/Videos with MVGGT. Click on any thumbnail below to view the 3D reconstruction.

the cabinet is in the northwest corner of the room. the cabinet is a white rectangular box.



Qualitative Comparison

MVGGT significantly outperforms all other methods. Please refer to our paper for quantitative results. Here we also provide a qualitative comparison with 2D-Lift and Two-Stage methods (use the dropdown menu to switch).

MVGGT (Ours)
2D-Lift

the fridge is tall, rectangular, and white. it is located to the right of the stove.

BibTeX

@misc{wu2026mvggt,
  Author = {Changli Wu and Haodong Wang and Jiayi Ji and Yutian Yao and Chunsai Du and Jihua Kang and Yanwei Fu and Liujuan Cao},
  Title = {MVGGT: Multimodal Visual Geometry Grounded Transformer for Multiview 3D Referring Expression Segmentation},
  Year = {2026}
}
